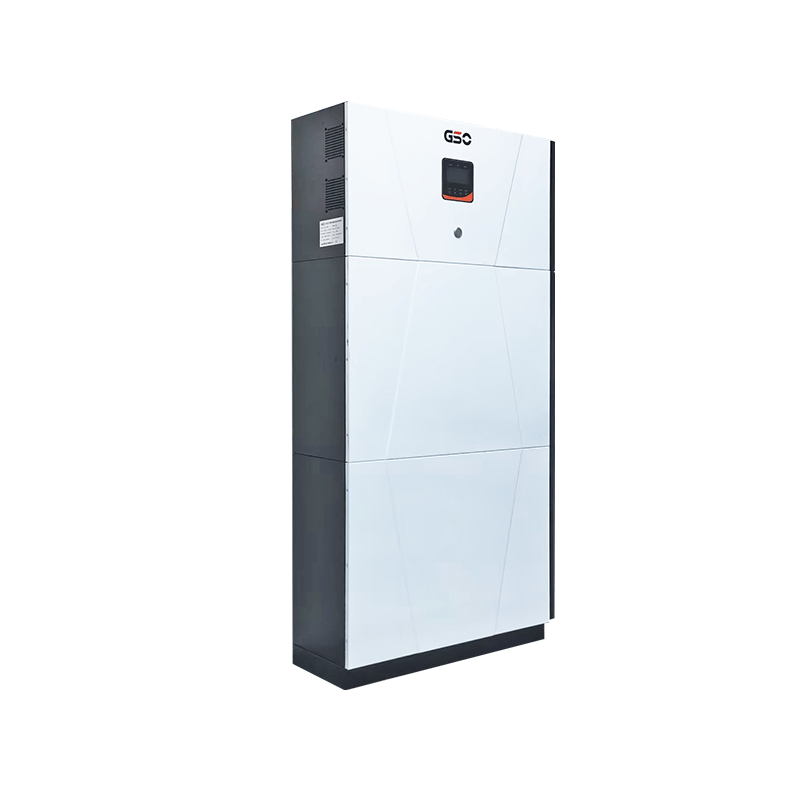

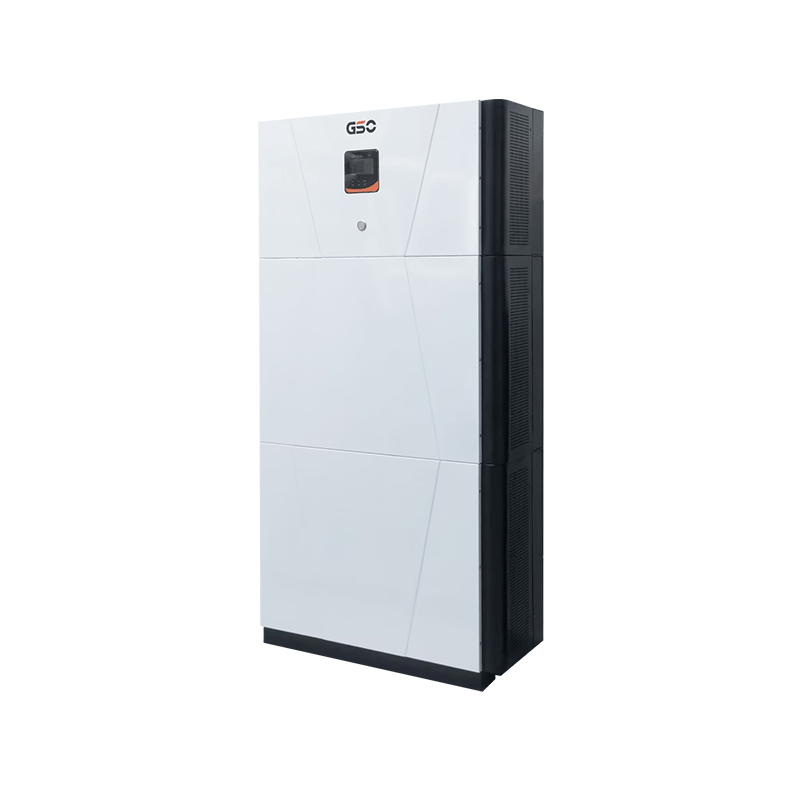

Stacked Pv & Battery Energy Storage Integrated Machine

Product Details

Model	GSL48
	5.5K-10kWh	5.5K-20kWh	5.5K-30kWh	10K-10kWh	10K-20kWh
Inverted Output
Rated Output Power(W)	5500			10000
Rated Output Powe(VA)	5500			10000
Maximum Peak Power(W)	10000			10000
Rated AC Output	230VAC (Can beset200y208/220/240VAC,50/60Hz)
Output Voltage Waveform	Pure Sine Wave
Inverter and Bypass Switching Time	10ms (typical)
Maximum Battery Inverter Efficiency	93%
Overload Protection	102%~110%，5min;110%~125%，10s;>125%，5S
Battery
Energy Capacity(kWh)	10	20	30	10	20
Battery Module Quantity	1	2	3	1	2
Rated Battery Voltage(VDC)	48
Battery Voltage Range(V)	42~54.75/44.8~58.4
Rated Charge-Discharge Rate	0.5C			1C
Max.MPPT Charging Current(A)	100			200
Max.Mains Charging Current(A)	60			120
Maxi.Hybrid Charging Current(A)	100			200
PV Charging
MPPT Quantity	1			2
Max. PV Array Power(W)	5500			5500+5500
Max.PVInput Current(A)	22			22+22
Max, Open Circuit Voltage(VDC)	500			500+500
MPPT Work Range(V)	120~450
MPPT Tracking Efficiency	99.9%
Mains Input
Input Voltage Range(VAC)	90~280/170~280
Frequency Range(Hz)	50/60±0.3
Specifications
Dimensions(WDH)mm	250690850	2506901310	2506901770	250690960	2506901420
Weight(kg)	125	225	325	128	228
Classification of Waterproof	IP20
Operating Temperature Range(C)	-10~55
Storage Temperature Range(C)	-25~60
Noise(dB)	<60
Heat Dissipation	Inverter forced air cooling (variable speed of fan) / Battery natural air cooling
Note: The above data is for reference and subject to change without prior notice. Special voltages can be customized.
