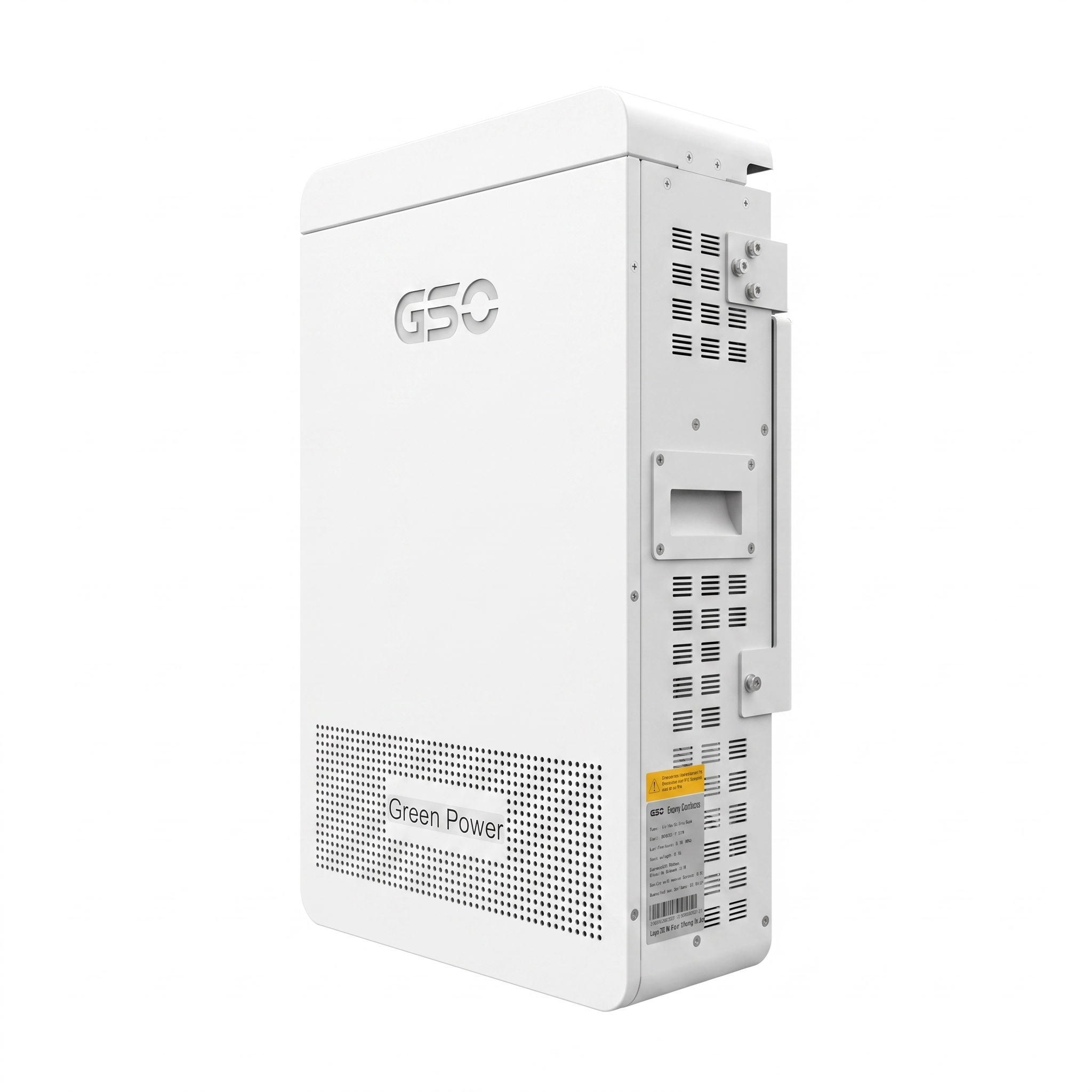

| Model | GBP-PRO Series |
| Style | Wheel/Wall |
| Cell | REPT、EVE、etc |
| Cycle | 6000+ times |
| Life | 10 years |
| Certificate | CE 、MSDS、UN38.3 |
Model | GBP-Pro Series | |||||
48-100 | 48-200 | 48-314 | 51.2-100 | 51.2-200 | 51.2-314 | |
Nominal Voltage (V) | 48 | 51.2 | ||||
Nominal Capacity (Ah) | 100 | 200 | 314 | 100 | 200 | 314 |
Operating Voltage Range (V) | 42~54.75 | 42~54.75 | ||||
Recommended Charging Voltage (V) | 51.75 | 55.2 | ||||
Recommended Discharge Cut-off Voltage (V) | 45 | 48 | ||||
Standard Charge/ Discharge Current (A) | 0.5C | |||||
Maximum Continuous Charge/Discharge Current (A) |
50/100 | 200 | 150 | 50/100 | 200 | 150 |
Allowable Humidity Range(%RH) | 85 | |||||
Storage Temperature (℃) | 30~60(Recommended10~35) | |||||
Charging Temperature (℃) | 0~55/-20~55(with heating function) | |||||
Protection Level | IP20 | |||||
Cooling Method | Natural Air Cooling | |||||
Cycle Life (Cycles) | ≥6000 | |||||
Communication Interface | CAN/RS485 | |||||
WIFI Module | Built-in Wi-Fi + Bluetooth | |||||
Capacity Expansion | Max. 20 modules in parallel (up to 48 for special applications) | |||||
Maximum Dimension (D*W*H)mm | 630*375*170 | 655*400*260 | 480*246*990 | 630*375*170 | 655*400*260 | 480*246*990 |
Weight(kg) | 48 | 94 | 145 | 50 | 94 | 148 |
