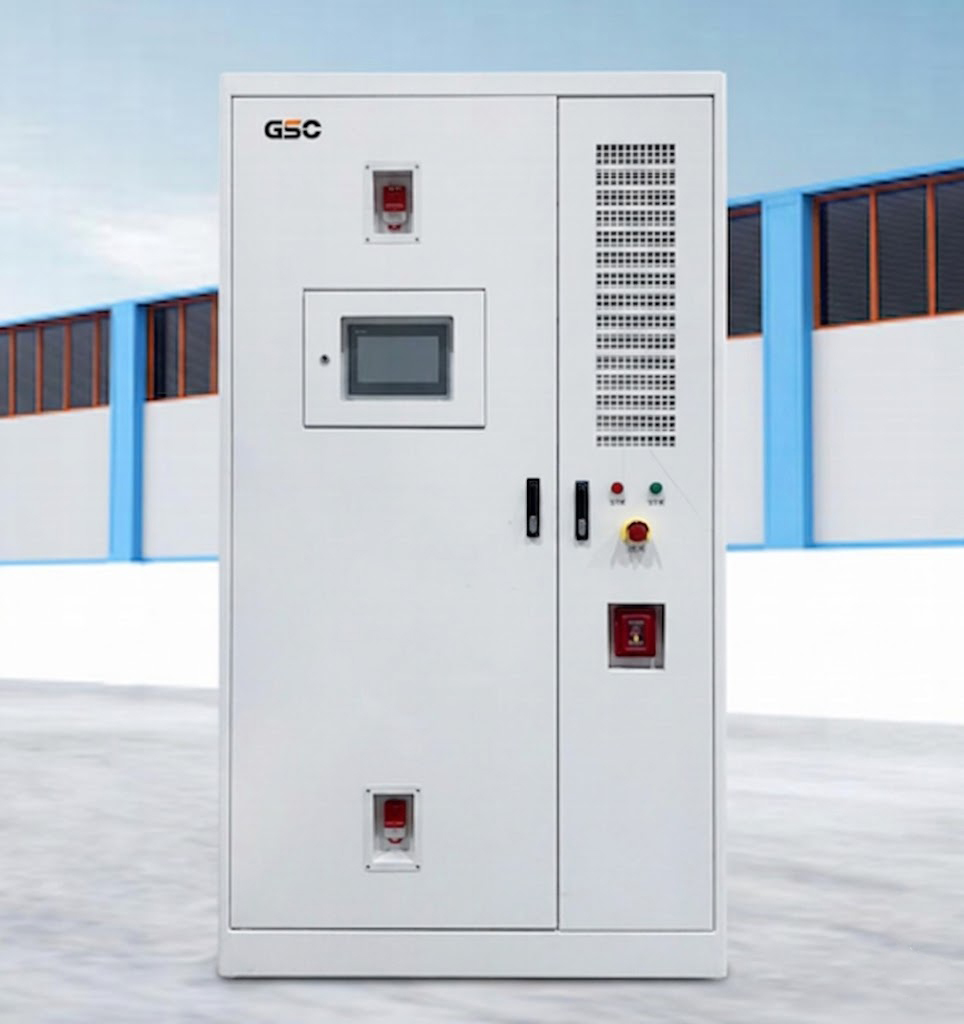

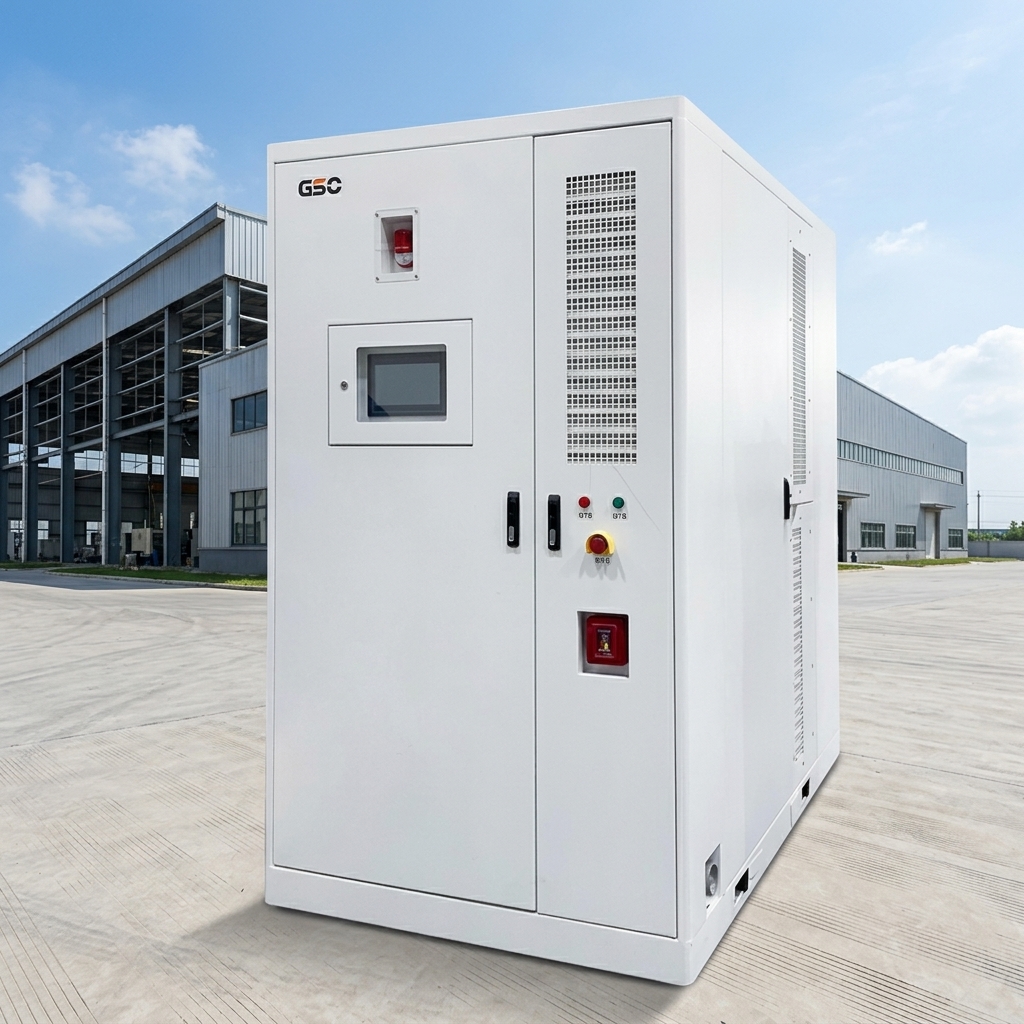

Advanced Liquid Cooling Outdoor BESS Cabinet 125kW 250kW High-Voltage Solar Storage System

Model	GLC125-261/GLC250-514
Style	Liquid Cooling Outdoor Cabinet
Cell	REPT、EVE、etc
Cycle	6000+ times
Life	10 years
Certificate	CE 、MSDS、UN38.3

Model		GLC125-261	GLC250-514
DC Battery Parameters	Battery cell Type	LFP3.2V/314Ah
	Battery Pack Configuration Battery Cystem Configuration	1P52S/52.249kWh 1P260S	1P64S/64.31kWh 1P256S*2
	Battery Voltage Range Battery System Capacity	728~923 261.24	716.8~908.8 514.45
	Temperature Detection	Battery cell + copper busbar
	BatteryCharging/Discharging Rate	≤0. 5P
AC Parameters (On grid)	Rated Power	125	250
	Maximum Output Power	135	270
	Rated Grid Voltage	AC380V-15%~+10%
	Rated Grid Frequency	50/60，±5
	Power Factor	-1 (leading) ~ 1 (lagging)
	AC Current Harmonics (THDi)	<3% (rated output power)
	Connect Method	Three-phase, four-wire
AC Parameters (On grid)	Rated Output Voltage	380V±3%AC
	Rated Output Power	125	250
	Rated Output Frequency	50/60Hz
	AC Voltage Harmonics (THDu)	<3% (linear load)
	Overload Capacity	1.1 times rated load (45°C), 1.2 times for 1 min, 1.3 times for 1 s
System Parameters	Highest System Efficiency	91%
Protection	DC Input	Load switch + fuse
	Overvoltage Protection	DC Type II/AC Type II
	Fire Protection System	PACK-level fire protection, full cabinet fire protection
Incoming Line Method		AC power input from bottom
Environment Requirements	Allowable Ambient Temperature	-30~+55 (derating at 45）
	Allowable Ambient Humidity	0~95%RH
	Maximum Working Altitude	3000 (derating above 2000)
	Protection Level	IP54
	Corrosion Resistance Grade	C3
	Cooling Method	Liquid cooling
	Weight	2.3	6
	Dimension(WDH) mm	98213802657	136023802394

Product Details

Performance characteristics:

Longevity and cost reduction :
Balancing technology improves battery consistency and extends system lifespan.
The temperature difference of the batteries in the PACK is less than 3°C, which effectively extends the battery life.
The charge and discharge conversion efficiency is greater than 91%, and the system life is more than 6,000 times.
Intelligent liquid cooling temperature control reduces auxiliary power consumption by 20%, saving operating costs.
Pre-installed design for easy transportation, no battery installation work.
Safe and reliable:
AI monitoring of battery cell health and early warning of sick batteries.
Closed liquid cooling system + cloud management, safer.
Triple independent fire protection, space-level and PACK-level fire protection, 1.5H fire resistance for the whole cabinet.
Efficient and flexible:
ALL IN ONE design concept, high power, high energy density, and 20% less floor space.
Intelligent cluster-level management reduces the cask effect of battery clusters and increases discharge capacity.
Plug and play,Three-phase four-wire.
Lean Intelligence:
SOC high-precision status assessment can dynamically adjust energy efficiency management strategies. Intelligent cloud operation and maintenance, APP terminal, unattended operation.
Multi-scenario function presets: substation management, industrial and commercial microgrids, oil engine replacement, etc.
