| Model | GYC-PC261 Series |

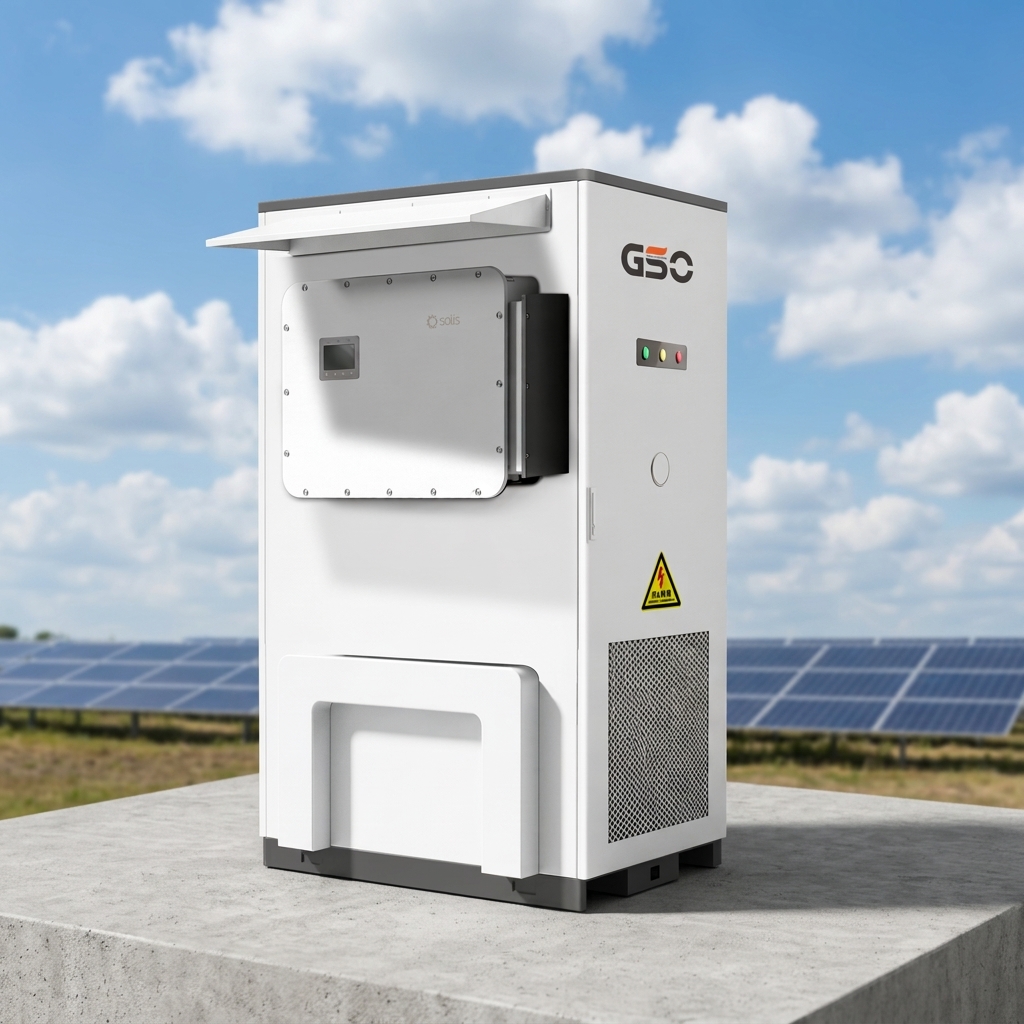

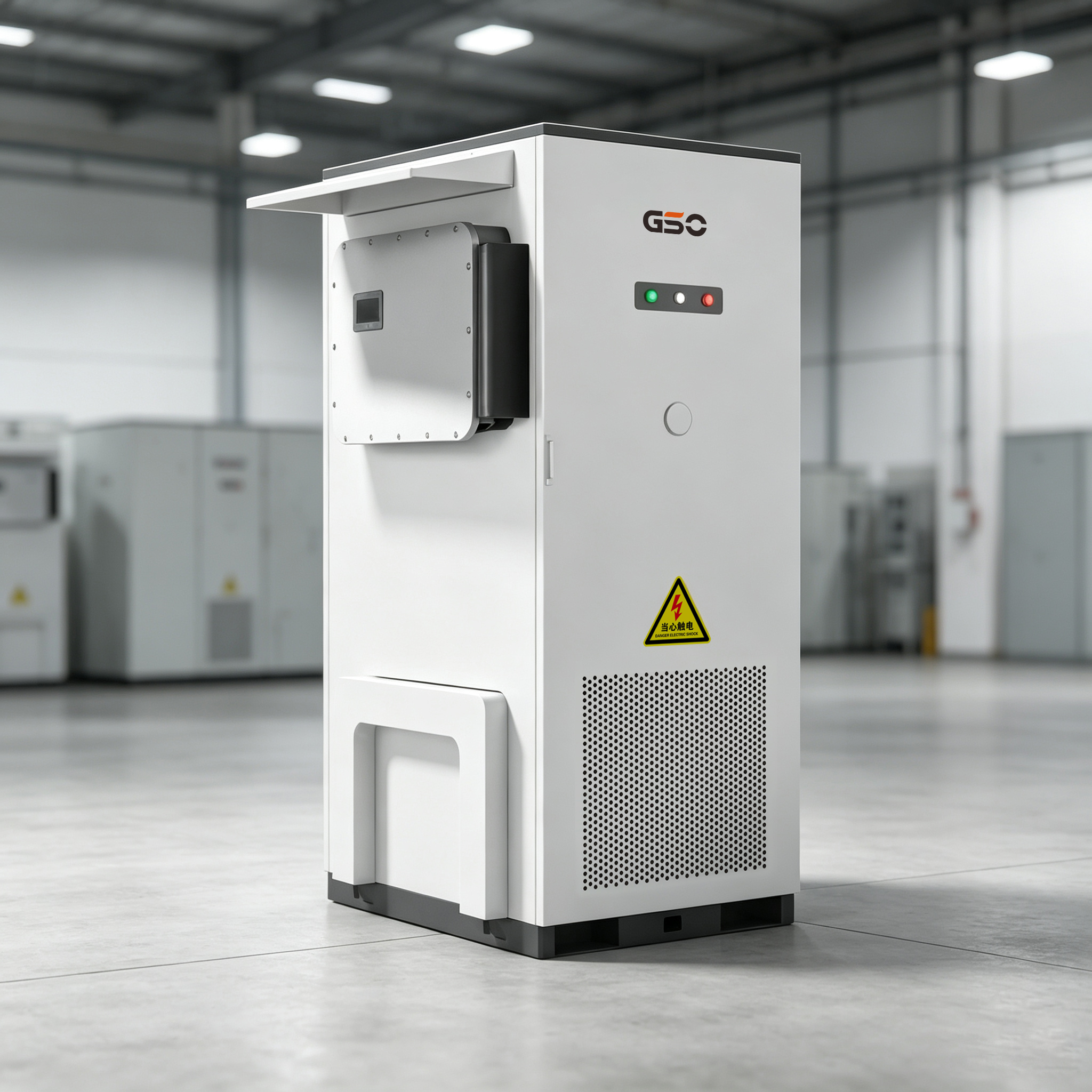

| Style | Liquid-Cooled Outdoor Integrated Cabinet |
| Cell | REPT, EVE etc |
| Cycle | 6000+ times |
| Life | 10 years |
| Certificate | CE , MSDS, UN38.3 |
| DC Battery Params | Product Model Cell Type | GYC-PC261 LFP3.2V/314Ah | ||||
| Cell Type | LFP3.2V/314Ah | |||||
| Battery System Config | 1P260S | |||||
| Battery Voltage Range | 728V~923V | |||||
| Battery Capacity | 261kWh | |||||
| C/D Rate | ≤0. 5C | |||||
| AC Params | Rated Power | 125kW | ||||
| Rated Grid Voltage | 3/N/PE,220V/380 V;3/N/PE,230 V/400 V | |||||
| Rated Grid Freq | 50/60Hz，±5Hz | |||||
| Rated Grid Current | 189.9A | |||||
| On/Off-Grid Switch Time | <10ms | |||||
| Power Factor | >0.99 (0.8 leading ~ 0.8 lagging) | |||||
| AC THDi | <3% (of rated output power) | |||||
| PV Side Params | Max PV String Power | 250kWp | ||||
| Max Input Voltage | 1000V | |||||
| Rated Input Voltage | 600V | |||||
| MPPT Operating Range | 150~950V | |||||
| Max MPPT Input Current | 10*42A | |||||
| MPPT Quantity / Max PV Strings | 10/20 | |||||
| System Params | Peak System Efficiency | 90% | ||||
| Fire System | Temp & smoke sensors, aerosol fire extinguishing (PACK & System), water fire interface | |||||
| IP Rating | IP55 (Battery Compartment) | |||||
| Ambient Temp Range | -30℃ ~ +55℃ (Derating above 45℃) | |||||
| Ambient Humidity Range | 0~95%RH | |||||
| Max Altitude | 4000m (Derating above 2000m) | |||||
| Cooling Type | Liquid Cooling | |||||
| Weight | Approx. 2.6t | |||||
| Dimensions (W×D×H, mm) | 1000×1340×2390mm (Excluding Inverter) | |||||
Extended Battery Lifespan via Smart Liquid Cooling Liquid-cooling design maintains uniform cell temperatures (ΔT ≤ 5°C), significantly slowing cell degradation compared to traditional air-cooled cabinets and extending operational service life by over 20%.
Low Maintenance Cost Structure Compact structural layout integrated with long-life key components reduces on-site manual inspection needs. Features one-click wireless upgrades and remote scheduling for minimal maintenance expenses.
Multi-Layer Active & Passive Safety Combines AI-driven early thermal runaway prediction, electrical isolation, multi-stage fire detection, and active exhaust to ensure 100% operational safety for commercial properties.
Wide Operating Voltage Range & Strong Grid Adaptability Wide battery voltage range (728V–923V) and adaptable to grid voltage fluctuations (-15% ~ +15%), ideal for regions with challenging utility infrastructure.
All-In-One Modular Design for Fast Deployment Combines 314Ah LFP battery modules, liquid cooling system, hybrid inverter, and smart fire safety in a compact single-cabinet design, significantly reducing site installation time and balance-of-system (BOS) costs.
High Efficiency MPPT Solar Tracking Equipped with up to 10 MPPT trackers (20 PV Strings) supporting 250 kWp Max PV String Power, allowing maximum solar energy harvesting even under partial shading conditions common in tropical regions.
Smart Grid & Off-Grid Hybrid Flexibility Supports 3-phase 220V/380V/400V grid environments with high power factor (>0.99) and low harmonic distortion (AC THDi < 3%), stabilizing unstable local grid connections.
Cloud & App Intelligent O&M Real-time monitoring via web and mobile app. AI self-evolving algorithm dynamically adjusts charge/discharge strategies according to local dynamic electricity tariffs.
Manufacturing Plants: Eliminate downtime caused by frequent grid fluctuations or load shedding.
Commercial Buildings & Malls: Utilize daytime solar power to run heavy HVAC loads and peak-shave power consumption.
Agricultural Farms & Processing Units: Provide stable off-grid electricity for isolated processing facilities.
