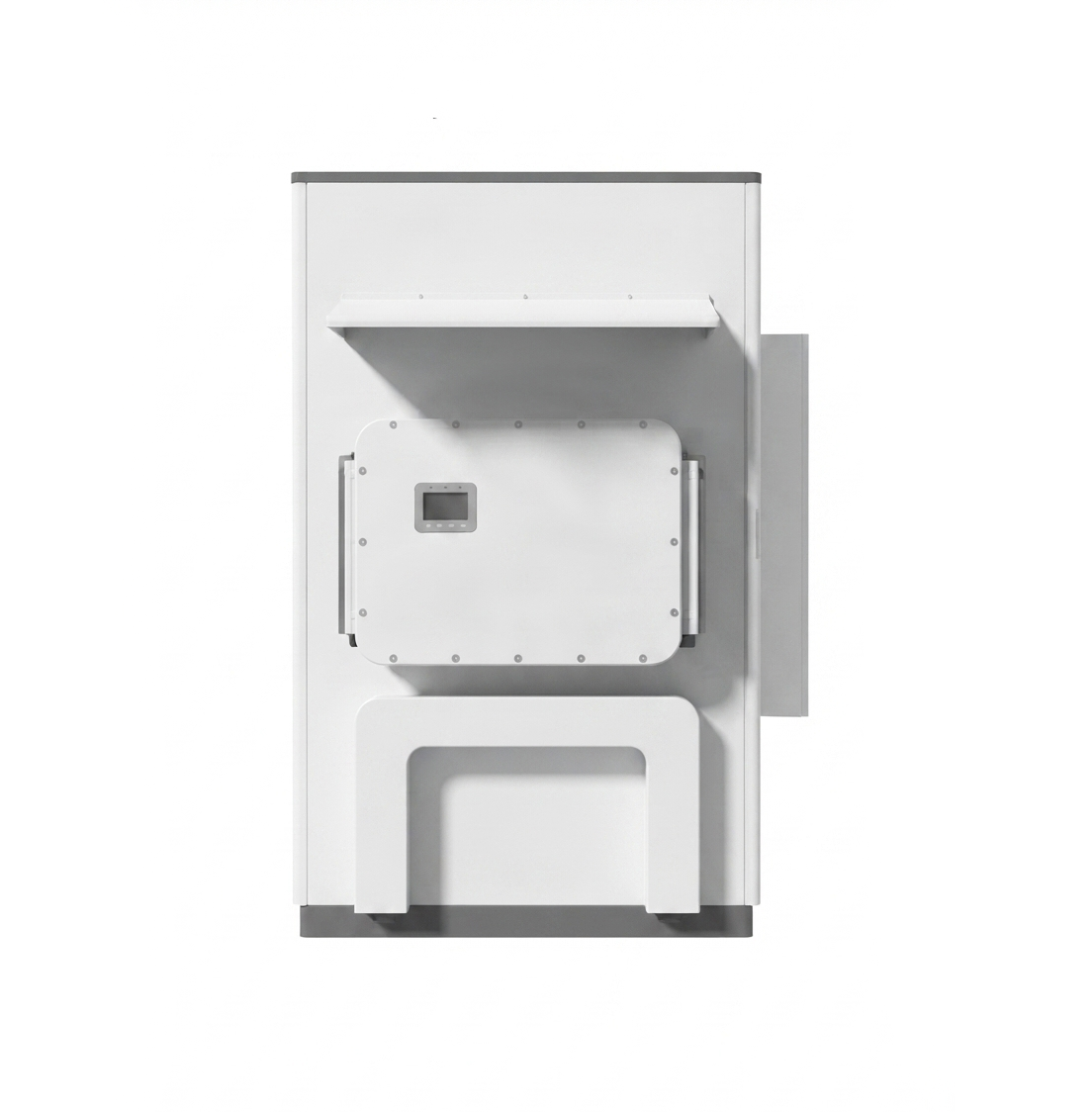

High-Voltage Modular Outdoor Solar Battery Bank 64kWh – 241kWh LiFePO4 ESS Cabinet

ModelGSS-PC Series
StyleOutdoor Cabinet
CellREPT、EVE、etc
Cycle6000+ times
Life10 years
CertificateCE 、MSDS、UN38.3
Get a Quote
General Parameters :
ModelSystem CompositionRated Voltage (V)Operating Voltage (V)Rated Energy (kWh)Dimensions(D*W*H)mmWeight(t)
GSS-PC44pack204.8192~227.264.31300*750*16750.9
GSS-PC55pack256240~28480.41300*750*19301
GSS-PC66pack307.2288~340.896.51300*750*21851.1
GSS-PC77pack358.4336~397.6112.51300*1183*14201.5
GSS-PC88pack409.6384~454.4128.61300*1183*16751.7
GSS-PC99pack460.8432~511.2144.71.8
GSS-PC1010pack512480~568160.81300*1183*19302
GSS-PC1111pack563.2528~624.8176.82.1
GSS-PC1212pack614.4576~681.6192.91300*1183*21852.3
GSS-PC1313pack665.6624~738.42092.4
GSS-PC1414pack716.8672~795.2225.11300*1183*24402.5
GSS-PC1515pack768720~8522412.6
System Parameters:
Cell ParametersCell TypeLithium Iron Phosphate Cell
Cell Specification3.2V314Ah
PACK ParametersCombination Mode16S1P
Rated Voltage (V)51.2
Operating Voltage (V)48~56.8
Rated Energy (kWh)16
Standard Charge/Discharge Power0.5P
System ParametersMaximum Charge/Discharge Rate0.5P
Protection & General ParametersDC Overcurrent ProtectionYes
DC Short - Circuit ProtectionYes
DC Overvoltage ProtectionYes
Over - temperature ProtectionYes
Fire - fighting SystemAerosol/Perfluoroketone Optional
Wiring ModeSide - entry Wiring
Ambient Temperature (°C)-20~50 (>45 requires derating)
Charging Temperature (°C)0~55
Discharging Temperature (°C)-10~55
Ambient Humidity (%RH)<95，No Condensation
Operating Altitude (m)5000（ Derated use above 2000m)
Protection ClassIP54(Key Components IP65)
Cooling MethodIndustrial Air Conditioning

Product Details

Product features:
  • Strong environmental adaptability:
  • It has the characteristics of waterproof, dustproof, sun-proof, and corrosion-resistant. It can operate stably for a long time in high temperature, humid, dusty and other outdoor environments, protecting the battery from external erosion
  • Safety protection design:
  • Fireproof materials or heat-insulating structures are usually used to reduce the risk of fire caused by battery overheating or short circuit; some products are equipped with anti-theft locks or intelligent monitoring systems to improve safety
  • Modularity and scalability:
  • Supports flexible combination of multiple battery packs to meet different capacity requirements; reserved interfaces are convenient for later upgrades or connection to other devices (such as solar panels, inverters,etc.).
  • Saving space and flexible deployment:
  •  Outdoor independent installation, no need to occupy indoor space; adaptable to diverse scenarios.
Product introduction ：The battery outdoor cabinet is safe, reliable, intelligent, efficient and flexible to deploy. Through modular design and advanced management technology, it provides users with cost-effective energy storage solutions. From cell-level safety control to system-level intelligent scheduling, it fully meets the energy storage needs of different scenarios, and helps green energy transformation and intelligent upgrade of power systems. It adapts to a variety of hybrid inverter brands, fully adapts to support single-branch and two-branch inverters.
