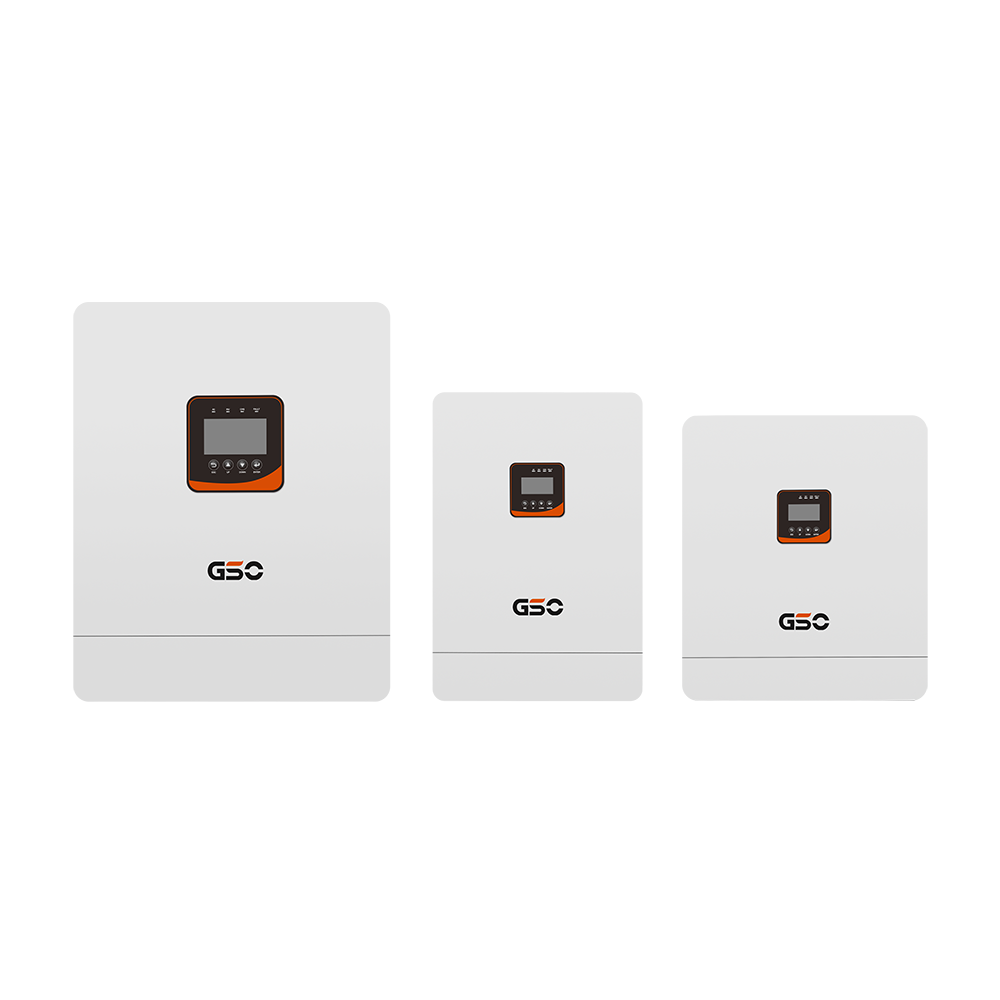

| Model | GST II series Single-phase |
| Standard | European Standard |
| Output Type | Split-phase |
| Life | 10 years |
| Certificate | CE 、MSDS、UN38.3 |
| Parameters of Single-Phase GST II Series Hybrid Inverter | ||||||
| Product Model | GST II 24-3.6K-P1 | GST II 48-6.6K-P1 | GST II 48-12K-P1 | |||
| Inverter O | utput | |||||
| Rated Output Power (VA) | 3600 | 6600 | 12000 | |||
| Output Power Factor | 1.0 | |||||
| Rated AC Output | 230Vac (220/240Vac configurable), 50/60Hz±0.1% | |||||
| Output Voltage Waveform | Pure Sine Wave | |||||
| Inverter & Bypass Switchover Time | 10ms/20ms | |||||
| Max. Parallel Quantity | Not Support Parallel | 9 Units | ||||
| Max. Battery Inversion Efficiency | 92.7% | 94% | ||||
| Overload Protection | 102%~110%，1min 110%~130%，10s 130%~150%，3s >150%， 0.2s | 102%~120%，1min >120%，10s | 102%~125%，1min 125%~200%，10s | |||
| Battery | ||||||
| Battery Type | Lithium Battery / Lead-Acid / User Customizable | |||||
| Rated Battery Voltage (VDC) | 24 | 48 | ||||
| Battery Voltage Range (VDC) | 21~30.5 | 42~61 | ||||
| Max. MPPT Charging Current (A) | 100 | 120 | 160 | |||
| Max. Grid Charging Current (A) | 100 | 120 | 160 | |||
| Max. Hybrid Charging Current (A) | 100 | 120 | 160 | |||
| Charging Voltage Accuracy | ±5% | |||||
| Charging Mode | Three-Stage / Two-Stage | |||||
| PV Charging | ||||||
| Number of MPPT | 1 | 1 | 2 | |||
| Max. Total Input Power (W) | 5000 | 9000 | 15000 | |||
| Max. Single-Channel Input Power (W) | 5000 | 9000 | 9000 | |||
| Max. Single-Channel Input Current (A) | 18 | 27 | 27 | |||
| PV Input Short-Circuit Current (A) | 22 | 33 | 33 | |||
| Max. Open-Circuit Voltage (V) | 500 | 500 | 500 | |||
| MPPT Operating Range (V) | 60~450 | 80~450 | 80~450 | |||
| Grid Input | ||||||
| Input Voltage Range (VAC) | 90~280/170~264 | |||||
| Frequency Range (Hz) | 50/60±10 | |||||
| Input Power Factor | 0.99 | |||||
| Max. Bypass Current (A) | 20 | 40 | 70 | |||
| Specifications | ||||||
| Dimensions (W*D*H mm) | 285*100*445 | 330*110*420 | 425*120*575 | |||
| Weight (Kg) | 7 | 9 | 16 | |||
| IP Rating | IP20 | |||||
| Operating Temperature Range (℃) | -10~50 | -10~60 | ||||
| Storage Temperature Range (℃) | -15~60 | |||||
| Operating Ambient Humidity (%RH) | 20%~95%, Non-condensing | |||||
| Communication | ||||||
| Embedded Interface | RS232 | |||||
| External Module | WiFi | |||||
| Certifications | ||||||
| Safety | EN62109-1/2 | |||||
| EMC | IEC61000 | |||||
Scalable Parallel Operation: Supports parallel expansion of up to 9 units (6.6K and 12K models), flexibly outputting single-phase and three-phase AC power.
Unlimited Grid-Tied Load Capacity: Integrated external CT interface enables unlimited grid-tied load capacity to match expanding power demands.
Dual MPPT High Input Design: The 12K model features 2 independent MPPTs with up to 15,000W max total input power to maximize solar energy harvest.
Robust Overload & Bypass Performance: Engineered to handle heavy surge loads with advanced multi-stage overload protection and high bypass current capacity.
Industrial-Grade Durability: Built with a sturdy IP20 housing, wide operating temperature range (-10°C to 60°C), and rigorous international certifications (EN62109, IEC61000).

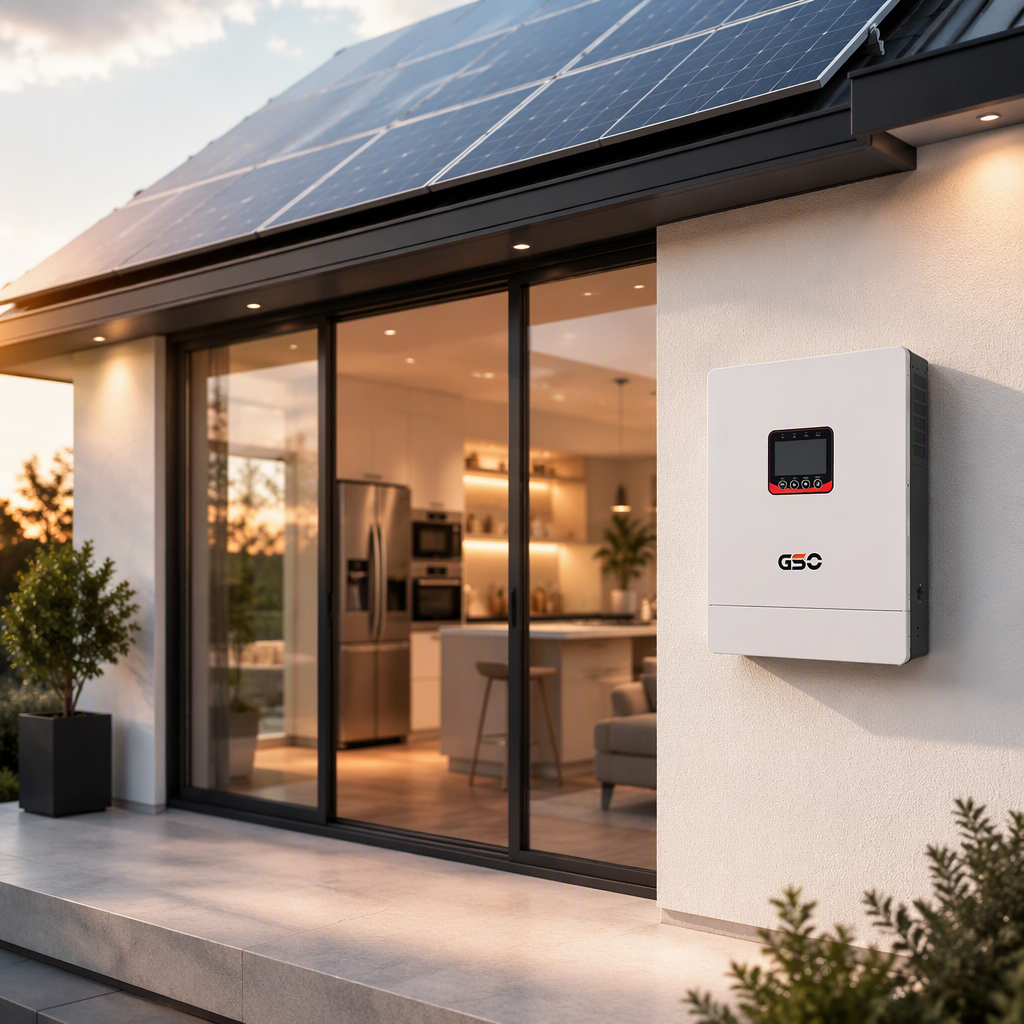

Upgrade your solar system with the GST II Series hybrid inverter. Features multi-priority charging modes, instant 10ms switchover, and intelligent app management.
